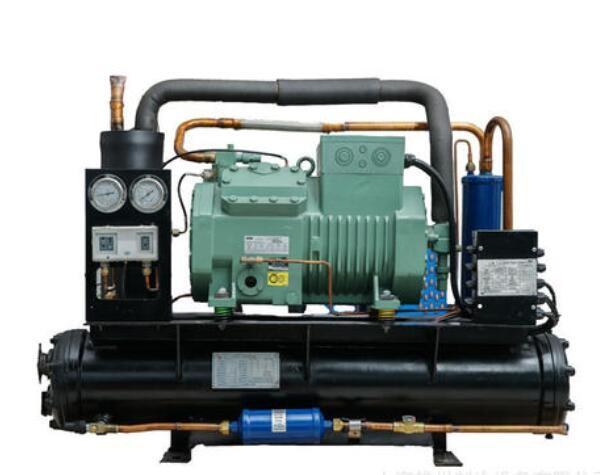

    14HP Compressor Condensing Unit Refrigeration Equipment For Cold Room

    14 HP Compressor Condensing Unit Refrigeration Equipment for Cold Room

    According to the needs of market development, our company has launched a fully enclosed box condensing unit, which changes the traditional form of fully enclosed condensing unit and can meet the needs of - 5 ℃ - 10 ℃, - 10 ℃ - 18 ℃ respectively. It can be widely used in hotels, restaurants, food, health, medicine, agriculture, chemical industry and other industries. The products of totally enclosed box condensing unit have the following characteristics:
    1. The company's fully enclosed box condensing unit has a variety of protections such as phase sequence, phase loss, over current, frequent compressor startup, discharge temperature, system high and low pressure and so on.
    2. It has the function of unit operation fault alarm and query. When the unit fails, the alarm sound will be sent out through the buzzer to remind the user in time.
    3. The operation panel for supporting the warehouse temperature control board has the functions of temperature display, setting, defrosting control, operation parameter query, warehouse temperature alarm, etc. it is installed separately from the unit and can be installed in a place convenient for users to operate and monitor.
    Features:
    1. Equiped with Semi-Hermetic compressor, reliable quality; Carrier, GEA BOCK, DORIN, COPELAND brand compressors are available
    2. Open type condensing unit, easy for installation and maintenance;
    3. Cooling Type: Optional: Air-cooled, water cooled, evaportaing condenser;
    4. Used for wide range temperature, middle and high: +5C to -5C, middle and low: -15 to -45C;
    5. World famous brand parts: Danfoss, ALCO, CAREL
    6. Refrigerant R404A, R22, R134a and R507 are all available.
    Low Temperature Unit
    ModelZHBD-9UZHBD-12UZHBD-14UZHBD-18UZHBD-23ZHBD-28ZHBD-34V
    Power supply
    Comp.Type
    Horsepower9121418232834
    Model4TES-9Y4PES-12Y4NES-14Y4HE-18Y4GE-23Y6HE-28Y6GE-34Y
    Qty1111111
    Cap. & inputTe-25℃Cap (W)950011700704016690196702460029700
    Input (KW)6.888.585.361214.2717.6921.8
    Te-30℃Cap (W)68308550522012450148201834022600
    Input (KW)5.747.244.6110.3512.3315.218.95
    Te-35℃Cap (W)4710603037609000108701326016680
    Input (KW)4.645.943.898.7510.4612.7516.19
    CondenserFan Qty1112222
    Fan Cap. (W)550550550460×2460×2550×2780×2
    pipeGas dia. (mm)φ35φ35φ3562207690917011910
    Liquid dia.(mm)φ16φ16φ227.238.7110.413.56
    Overall sizes L (mm)9679679671354135418701870
     W (mm)825825825825825925925
      H(mm)1235123512351235123512351235

    FAQ
    1. Why do we insist original new compressor?
    Only original brand new compressor can have the best quality & high efficiency. So you save money on electric bill and maintenance cost.

    2. Why same HP compressors have big price difference?
    Even same horse power compressor condensing unit, the compressor have different designs, so the cooling capacities are different. Also their condensers are different. So cooling capacity bigger, price higher.

    3. Can refrigeration units be customized?
    Yes. We have experienced technicians and professional team can help customization. But we have many models for you to choose, better choose them because the delivery time is much shorter.

    4. How many kinds of compressors?
    Semi-hermetic(ECOLINE series),Two stages semi-hermetic, Semi-hermetic screw compressor, Hermetic screw compressor.
