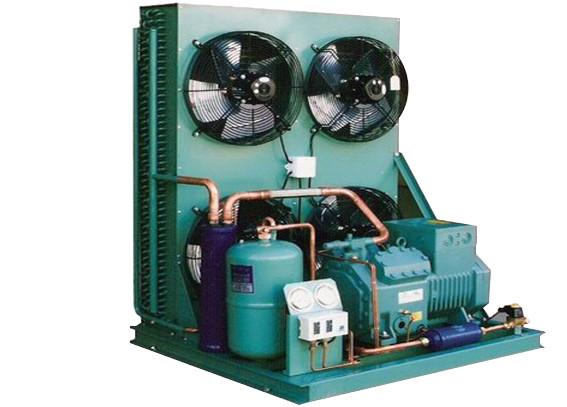

    Rainproof 5HP Water Cooled Cold Room Condensing Unit Refrigeration Units

    5HP Water Cooled Cold Room Condensing Unit refrigeration units -25~+10℃

    The piston compression condensing unit has the characteristics of compact structure, easy maintenance and convenient selection, and is widely used in refrigeration devices such as air conditioning systems, refrigerators, refrigerators, and low temperature boxes. Large and medium-sized central air-conditioning systems, large and medium-sized refrigerators, and industrial chilled water systems are generally equipped with ammonia compression condensing units, while medium and small refrigeration units and air-conditioning systems mostly use Freon units.
    Water cooled condensing unit can improve the cooling coefficient of the refrigeration00 system. The water-cooled unit usually consists of a compressor, an oil separator, a water-cooled condenser, an instrument control panel, a connecting pipe, a valve, etc. The open compressor is also equipped with a motor. The water-cooled condenser often adopts the horizontal shell-and-tube type, which not only has the function of condensing, but also has the function of accumulator. The cylinder and the cylinder head of the ammonia compressor are connected with a cooling water circuit to ensure the normal operation of the compressor.
    Advantage:
    1. Refrigeration: R22, R404A, R134a, R507.
    2. Temperature Range: From - 30°C To + 15°C.
    3. Original and handsome shape,light and reasonable structure,convenient installation.
    4. Use original brand compressor,strong cold wind force, superior reliability, long service life.
    5. Installation without restriction by field, small occupation area, tight structure, convenient for package and transportation.
    6. Use efficient, low power, low noise and strong-wind axial fan motor.
    7. Efficient heat transfer surface,low noise when operating.
    8. Simple structure, accurate and reliable operating system.
    9. Integral installation, anticollision, rainproof structure feature.
    10. High efficiency and energy saving design.
    11. Full automatic control, easy to operation and management.
    Low Temperature Unit
    ModelZHBD-9UZHBD-12UZHBD-14UZHBD-18UZHBD-23ZHBD-28ZHBD-34V
    Power supply
    Comp.Type
    Horsepower9121418232834
    Model4TES-9Y4PES-12Y4NES-14Y4HE-18Y4GE-23Y6HE-28Y6GE-34Y
    Qty1111111
    Cap. & inputTe-25℃Cap (W)950011700704016690196702460029700
    Input (KW)6.888.585.361214.2717.6921.8
    Te-30℃Cap (W)68308550522012450148201834022600
    Input (KW)5.747.244.6110.3512.3315.218.95
    Te-35℃Cap (W)4710603037609000108701326016680
    Input (KW)4.645.943.898.7510.4612.7516.19
    CondenserFan Qty1112222
    Fan Cap. (W)550550550460×2460×2550×2780×2
    pipeGas dia. (mm)φ35φ35φ3562207690917011910
    Liquid dia.(mm)φ16φ16φ227.238.7110.413.56
    Overall sizes L (mm)9679679671354135418701870
     W (mm)825825825825825925925
      H(mm)1235123512351235123512351235

    FAQ
    1. Why do we insist original new compressor?
    Only original brand new compressor can have the best quality & high efficiency. So you save money on electric bill and maintenance cost.

    2. Why same HP compressors have big price difference?
    Even same horse power compressor condensing unit, the compressor have different designs, so the cooling capacities are different. Also their condensers are different. So cooling capacity bigger, price higher.

    3. Can refrigeration units be customized?
    Yes. We have experienced technicians and professional team can help customization. But we have many models for you to choose, better choose them because the delivery time is much shorter.

    4. How many kinds of compressors?
    Semi-hermetic(ECOLINE series),Two stages semi-hermetic, Semi-hermetic screw compressor, Hermetic screw compressor.
